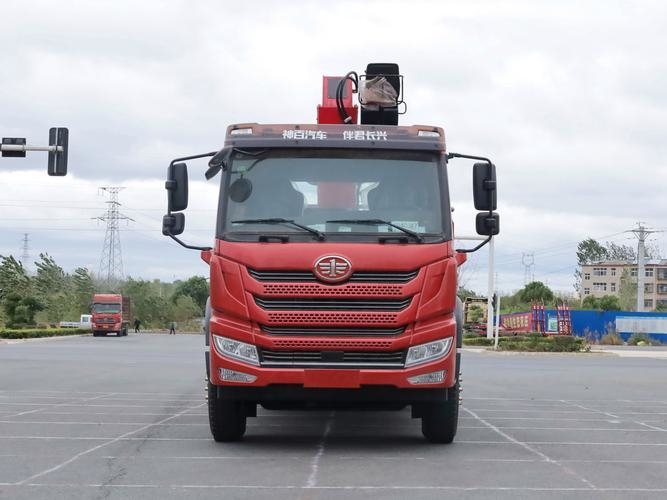

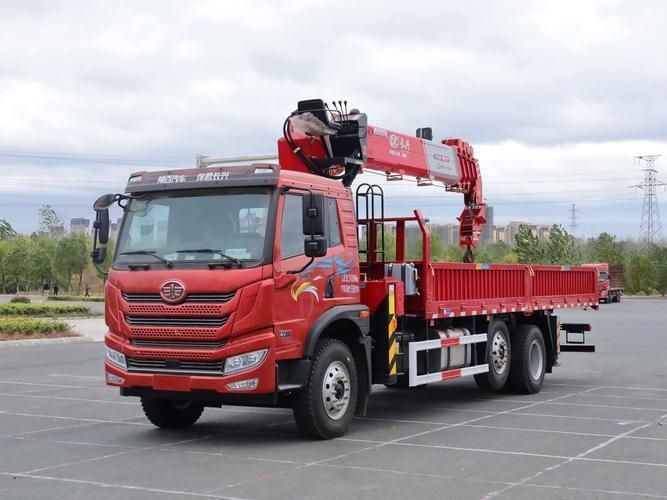

The FAW GL3004 is a robust and highly functional crane truck engineered for demanding lifting and material handling operations across construction, logistics, and industrial sectors. Built on a reliable 6×4 drive chassis, this vehicle combines mobility with powerful crane functionality, making it ideal for tasks such as equipment installation, cargo loading, and infrastructure projects.
At the core of its lifting capabilities is a telescopic straight-arm crane with a maximum lifting capacity of 12,000 kg and a maximum lifting moment of 300 kN·m. The crane offers exceptional versatility with a maximum working height of 20.7 meters and a maximum working radius of 15.5 meters, allowing it to handle loads at significant heights and distances. The boom can elevate from 0 to 75 degrees and swivel a full 360 degrees, providing precise positioning and operational flexibility in confined or complex worksites.
The crane is stabilized by outriggers with a span of 5.95 meters, ensuring safety and stability during lifting operations. Its rated working force of 50+40 indicates compatibility with auxiliary tools or secondary lifting systems, further expanding its utility.
Mounted on a chassis with overall dimensions of 12,000 × 2,500 × 3,800 mm, the truck includes a practical cargo box measuring 8,400 × 2,400 × 550 mm, offering additional space for transporting tools, materials, or counterweights. Weighing 4,700 kg, the crane assembly maintains a balance between strength and vehicle maneuverability.

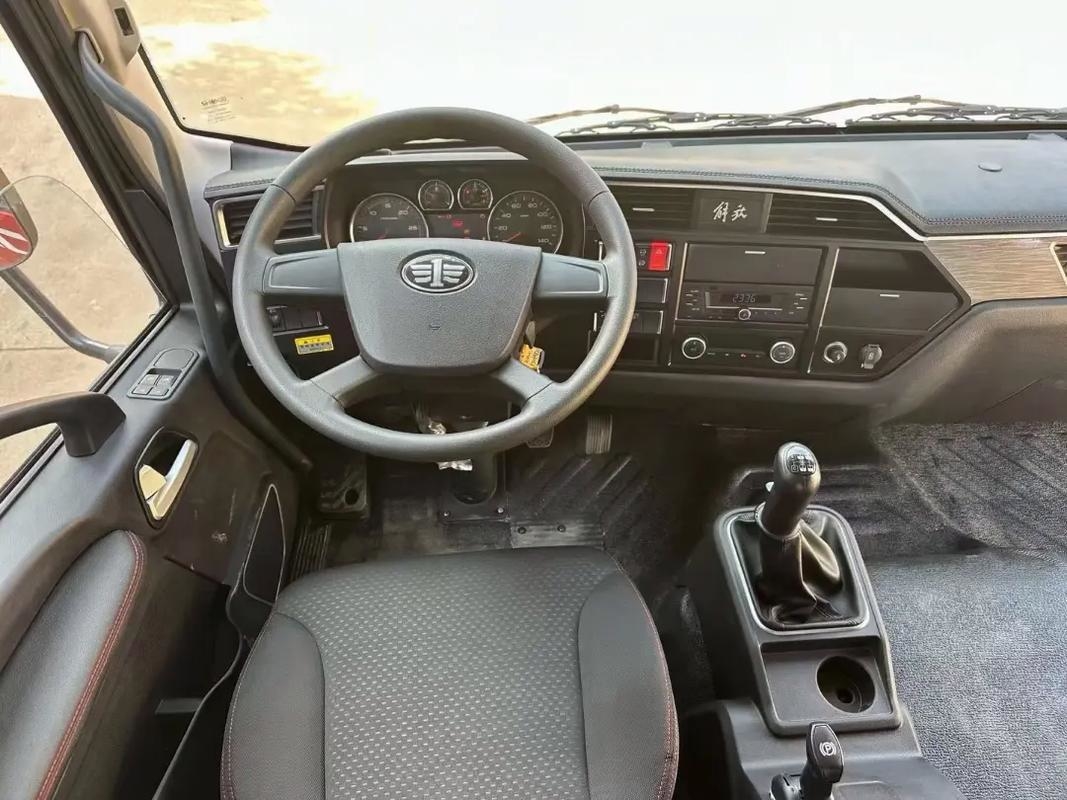

Powering the vehicle is a diesel engine compliant with Euro 4 emission standards, paired with a manual transmission for reliable control and durability. The 6×4 drive configuration ensures traction and stability on rough or uneven terrain, essential for accessing remote or challenging job sites.
Designed for efficiency and safety, the FAW GL3004 crane truck integrates functional design with robust engineering. Its combination of lifting power, reach, and transport capacity makes it an invaluable asset for industries requiring mobile and adaptable lifting solutions. Whether used in urban construction or rural projects, this crane truck delivers performance and reliability where it matters most.
| Model |
GL3004 |
| Emission Standard |
Euro 4 |
| Transmission Type |
Manual |
| Drive type |
6*4 |
| Overall Dimension |
12000x2500x3800(mm) |
| Cargo box dimension |
8400X2400X550(mm) |
| Max Lifting Capacity (kg) |
12000 |
| Max Lifting Moment (KN_m) |
300 |
| Max Working Arm Length(m) |
15.5 |
| Max Working Height(m) |
16.5 |
| Boom Elevation Range(°) |
0-75 |
| Swivel Angle(°) |
360° |
| Outrigger Span(m) |
5.95 |
| Rated Working Flow Rate(L/M) |
50+40 |
| Weight(kg) |
4700 |
| Lifting Height |
20.7m |
| Crane type |
telescopic straight arm crane |
