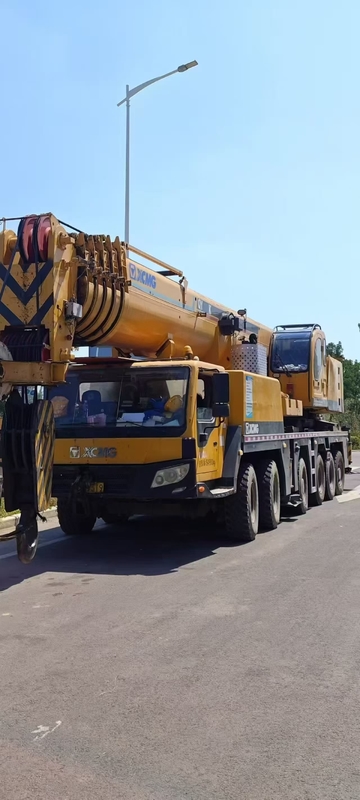

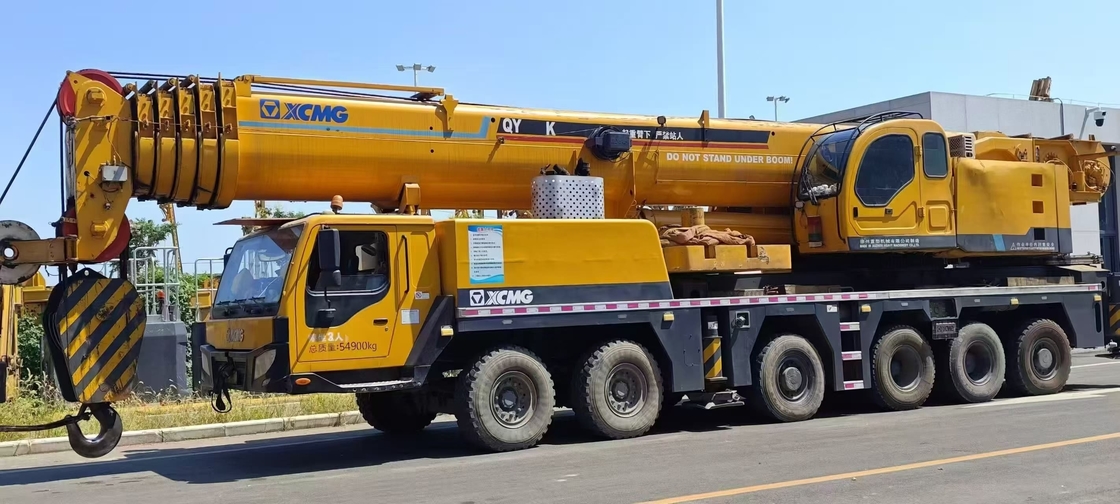

The XCMG Crane Truck QY100K is a heavy-duty mobile crane designed for demanding lifting operations across construction, infrastructure, and industrial applications. Measuring 15,600 mm in length, 3,000 mm in width, and 3,850 mm in height, this robust machine provides a stable platform for high-capacity lifting tasks. Its six-axle configuration distributes a total axle load of 54,900 kg, with individual axle loads ranging from 7,000 kg to 12,000 kg, ensuring balanced weight distribution during operation.
Powered by a high-performance engine delivering 174 kW at 2,300 rpm, the QY100K generates a maximum torque of 875 N.m at 1,400 rpm, providing reliable power for heavy lifting operations. The crane truck demonstrates excellent mobility with a maximum gradeability of 40%, a minimum turning diameter of 24 meters, and 300 mm of ground clearance, allowing it to navigate challenging job sites effectively. With an approach angle of 20° and departure angle of 14°, the vehicle maintains good maneuverability in various terrain conditions.
The crane's impressive lifting capabilities include a maximum rated capacity of 100 tons at a minimum working radius of 3 meters. It features multiple boom configurations to accommodate different job requirements: the base boom offers 3,450 kN.m of moment at 4-meter radius with 88-ton capacity, while the full-extended boom provides 1,925 kN.m at 2.4-meter radius with 8.3-ton capacity. When equipped with a jib extension, it achieves 708 kN.m at 25.8-meter radius with 2.8-ton capacity. The crane incorporates a 4,200 mm counterweight and 4,590 mm auxiliary winch for enhanced stability and precision during lifts.
Safety features include a braking distance of 10 meters or less when traveling at 30 km/h, ensuring reliable stopping power. The crane truck consumes approximately 70 liters of fuel per 100 km, balancing performance with operational efficiency. These characteristics make the QY100K particularly suitable for large-scale construction projects, bridge installations, industrial maintenance work, and wind turbine assembly.
With its combination of lifting power, mobility, and operational flexibility, the XCMG QY100K serves as a versatile solution for professionals requiring heavy lifting capabilities. Its design prioritizes stability and performance across various working conditions, making it a valuable asset for contractors and project managers handling complex lifting challenges in diverse environments.
