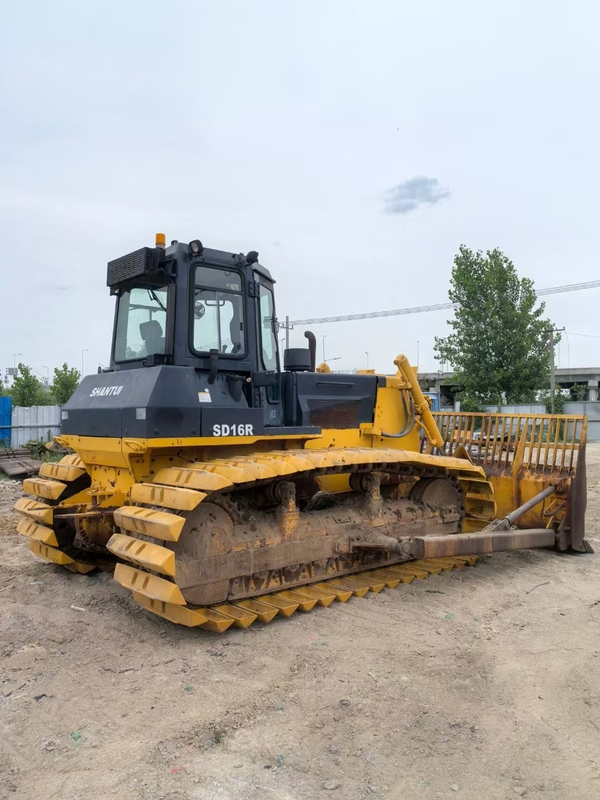

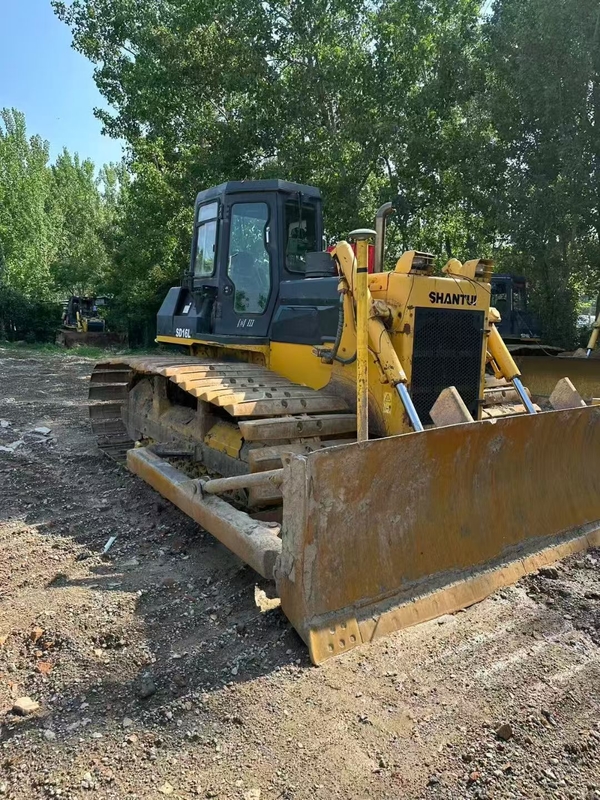

Used Shantui SD16R Crawler Bulldozer Versatile Durable For Earthmoving And Construction Operations

The Shantui SD16R Crawler Bulldozer is a robust and versatile machine designed for heavy-duty earthmoving and construction tasks. Powered by a Weichai WD10G178E25 engine, it delivers a rated horsepower of 120 kW, ensuring strong performance under demanding conditions. The bulldozer features a planetary gear transmission system with a multi-disc clutch and forced hydraulic lubrication, providing smooth and efficient power delivery across its four forward and four reverse speed ranges. Forward speeds range from 0-2.67 km/h in 1st gear to 0-11.13 km/h in 4th gear, while reverse speeds span from 0-3.48 km/h to 0-9.92 km/h, offering flexibility for various operational needs.

With a low ground pressure of 0.027 MPa, the SD16R minimizes soil disturbance, making it suitable for work on softer terrains. Its 4.6-meter minimum turning radius enhances maneuverability in confined spaces. The bulldozer excels in steep environments, boasting a gradeability of 30°, and is equipped with a 3.8 m³ dozing capacity blade, which stands 960 mm tall and can drop 495 mm below ground level for efficient material handling. The ripper attachment, a 3-shank configuration, adds versatility for breaking up hard or compacted surfaces.

The undercarriage system includes 2 carrier rollers and 7 track rollers on each side, paired with 1100 mm wide assembled single-grouser track shoes, ensuring stability and traction. The machine's dimensions (5262 mm in length, 4150 mm in width, and 3074 mm in height) and a maximum system pressure of 14 MPa reflect its sturdy build. Designed for durability and efficiency, the Shantui SD16R is ideal for construction, mining, and land-clearing projects, offering a balance of power, precision, and reliability.
